JYQD-V7.3E3 3 Phase BLDC Motor Driver 15A Current PWM Speed Control

Customer Reviews
Great customer service and everything arrived on time. The product was quality work.

—— Malik William

Great product and we are very happy with the responsiveness. We have purchased multiple times and remain very satisfied.

—— Matheus Potter

I'm Online Chat Now

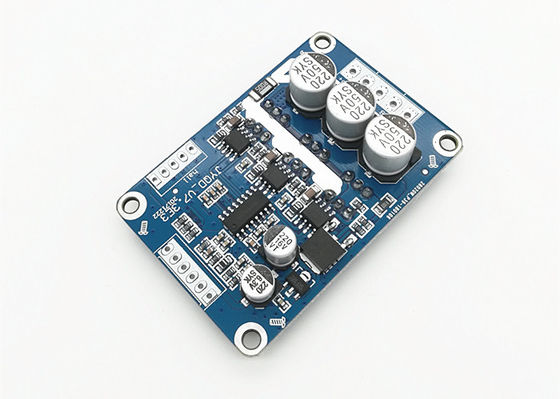

JYQD-V7.3E3 3 Phase BLDC Motor Driver 15A Current PWM Speed Control

JYQD-V7.3E3 3 Phase BLDC Motor Driver 15A Current PWM Speed Control
JYQD-V7.3E3 3 Phase BLDC Motor Driver 15A Current PWM Speed Control JYQD-V7.3E3 3 Phase BLDC Motor Driver 15A Current PWM Speed Control

Large Image :  JYQD-V7.3E3 3 Phase BLDC Motor Driver 15A Current PWM Speed Control

Product Details:
Place of Origin: China
Brand Name: JUYI
Model Number: JYQD-V7.3E3
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PE bag+ carton
Delivery Time: 5-10 days
Payment Terms: T/T,L/C,Paypal
Supply Ability: 1000sets/day

JYQD-V7.3E3 3 Phase BLDC Motor Driver 15A Current PWM Speed Control

Description
Working Voltage: 12V-36VDC Working Current: 15A
PWM Speed Control: (1-20KHZ) Duty Cycle 0-100% Speed Pulse Signal Output: YES
Shape: Rectangle ANALOG VOLTAGE SPEED REGULATION (V): 0 - 5V
High Light:

three phase pwm motor driver

,

3 phase induction motor controller

JYQD-V7.3E3 Hall effect BLDC motor driver24VDC, 15A current PWM speed control

MODEL OPERATING TEMPERATURE(℃) OPERATING VOLTAGE(V) MAX Power

· CONTINUOUS OPERATING CURRENT

(A)

PWM SPEED REGULATION

(1-20KHZ)

ANALOG VOLTAGE SPEED REGULATION (V) Speed pulse signal output
JYQD-V7.3E3 -20—85℃ 12V-36V 500W 15A

Duty cycle

0-100%

0-5V










Applications:
BLDC fan
BLDC motor
BLDC air blower
BLDC lawn mower

JYQD-V7.3E3 3 Phase BLDC Motor Driver 15A Current PWM Speed Control 0JYQD-V7.3E3 3 Phase BLDC Motor Driver 15A Current PWM Speed Control 1



Wiring diagram
JYQD-V7.3E3 3 Phase BLDC Motor Driver 15A Current PWM Speed Control 2
1. Control port
5V —Driver board internal output voltage, external potentiometer or switch for speed adjustment and reversing operation

Z/F —Rotating direction control ports. Connect “5V” high level or no connect is Forward direction, connect 0 V low level or connect to GND is reverse direction.

VR —Speed control port. Analog voltage linear speed regulation 0.1v -5V, The input resistance is 20K Ohm ,connect with GND when input PWM speed regulation, PWM frequency:1-20KHZ; Duty cycle 0-100%

EL —Enable port control. Connect 5V or no connect to allow operation, connect GND to forbid operation.

Signal— Speed pulse signal output

GND—Used for Drive board internal control

2. Power port

MA ----motor phase A
MB ---- motor phase B
MC---- motor phase C
GND ----DC-
VCC----DC +

3:Hall sensor port
Ha--- Hall a
Hb---Hall b
Hc---Hall c
GND---GND
5V---5V output



Dimensional drawing
JYQD-V7.3E3 3 Phase BLDC Motor Driver 15A Current PWM Speed Control 3

Application guidelines
1. Confirm that the voltage and power parameters of the motor not exceed the range as specified.
2. Applicable to hall brushless dc motor with Hall at 120°, not all manufacturers' Hall line sequence are corresponding, you can adjust the Hall line sequence or motor three-phase line sequence according to the actual situation, to achieve the best driving effect.
3. JYQD-V7.5E is driver board without housing and heatsink, it can drive the motor below 100 watt without any heatsink, but needs normal ventilation.
4. The 5V output port on the drive board is forbidden to connect external power equipment. It is only applicable to external potentiometer or switch for speed adjustment, commutation and enabling operation















JYQD-V7.3E3 3 Phase BLDC Motor Driver 15A Current PWM Speed Control 4
DOWNLOAD JYQD-V7.3E3 USER MANUAL
