500W Brushless DC Motor Driver , Hall Effect 24 Volt DC Motor Speed Controller

500W Brushless DC Motor Driver , Hall Effect 24 Volt DC Motor Speed Controller
500W Brushless DC Motor Driver , Hall Effect 24 Volt DC Motor Speed Controller 500W Brushless DC Motor Driver , Hall Effect 24 Volt DC Motor Speed Controller

Large Image :  500W Brushless DC Motor Driver , Hall Effect 24 Volt DC Motor Speed Controller

Product Details:
Place of Origin: China
Brand Name: JUYI
Model Number: JYQD-V7.3E3
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PE bag+ carton
Delivery Time: 5-10 days
Payment Terms: T/T,L/C,Paypal
Supply Ability: 1000sets/day

500W Brushless DC Motor Driver , Hall Effect 24 Volt DC Motor Speed Controller

Description
Working Voltage: 24VDC Working Current: 15A
PWM Speed Control: Duty Cycle 0-100% Speed Pulse Signal Output: YES
Hall Effect: Yes Brushless: Yes
High Light:

24v dc motor speed controller

,

24v brushless controller

12V,24V,36V,5A,10A,15A 500W brushless DC motor driver,Hall sensor,brushless DC motor speed controller JYQD-V7.3E3

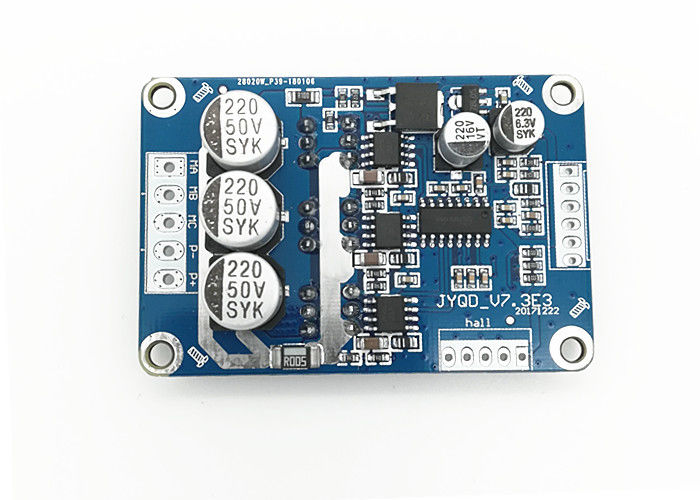

JYQD-V7.3E3 12V-36V brushless DC motor driver circuit board


ATTENTION:

1: This brushless DC motor driver board is widely apply to DC Brushless with Hall sensor (120°angle) three-wire motors
2:please make sure to add heat sink when the output power more than 60W.



When installing the heat sink, please add insulation layer for 6pcs MOS. It will damage the driver board permanently without insulation,and also apply Heat-Conducting Silicone Grease on the insulation for better cooling.

3: As the BLDC motor factory may use different Hall sequence,if the motor start abnormal, can't start or the current getting to high, please adjust the sequence of the Hall, or the driver will be damaged.



4:Please offer the right voltage to the driver, do not exceed the operating range. and the driver has built-in 5V for speed control, DO NOT connect extra power supply( 5V ) into the driver for speed controlling, it will damage the driver.



500W Brushless DC Motor Driver , Hall Effect 24 Volt DC Motor Speed Controller 0



Specifications

Operating Voltage DC 12V-36V
Operating current ≤15A
Output power ≤500W
Speed control 0.1V-5V or PWM input
Operating temperature -40-85℃
Operating humidity ≤90%
Protection Overload protection, locked-rotor protection, over-current protection
Functions Speed pulse signal output, soft reversing (485,CAN port optional)
Overall dimension 63X42.5X17mm (L*W*H)
Net weight 55 g
Optional component

Speed regulating potentiometer

external 5 digit tachometer





Wiring instructions

500W Brushless DC Motor Driver , Hall Effect 24 Volt DC Motor Speed Controller 1









Mounting dimension

500W Brushless DC Motor Driver , Hall Effect 24 Volt DC Motor Speed Controller 2

DOWNLOAD JYQD-V7.3E3 USER MANUAL
