Product Details:
|
| Working Voltage: | 12-36V | Working Current: | 3 A |
|---|---|---|---|
| Products Name: | BLDC Water Pump Controller | EMC: | YES |
| Shape: | Round | PWM Frequency: | 1 - 20 KHZ |
| Highlight: | automatic water tank pump controller,electronic water pump pressure switch controller |
||

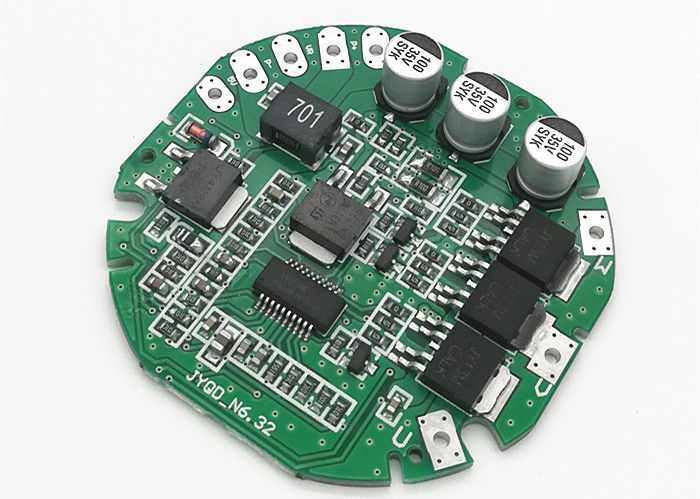

12-36V DC JYQD-N6.32 BLDC motor driver for brushless water pump
| Model number | JYQD-N6.32 |
| Operating temp. | -20—85℃ |
| Operating voltage | 12V-36V |
| Max current | 3A |
| Cont.working current2 | 2A |
| · PWM speed control | PWM frequency:1-20KHZ; Duty cycle 0-100% |
| Analog voltage speed regulation | 0-5V |
| O.V / L.V protection | YES |
| Speed pulse signal output | YES |
| 5V -----0-5V Analog voltage speed regulation |
| P- ---- DC - |
| VR--- PWM speed regulation |
| P+----DC+ |
| FG----speed pulse signal output |
| U ----motor phase U |
| V ---- motor phase V |
| W---- motor phase W |
