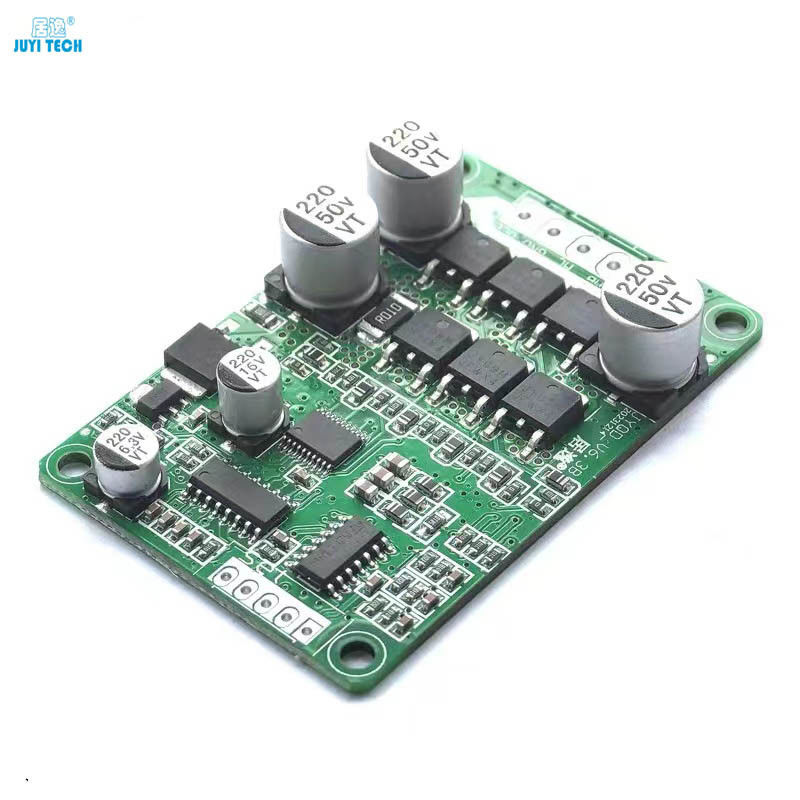

3 pahses DC 7-48V JUYI Brushless motor driver board 10A sensorless motor speed controller with PWM control

3 pahses DC 7-48V JUYI Brushless motor driver board 10A sensorless motor speed controller with PWM control
3 pahses DC 7-48V JUYI Brushless motor driver board 10A sensorless motor speed controller with PWM control 3 pahses DC 7-48V JUYI Brushless motor driver board 10A sensorless motor speed controller with PWM control

Large Image :  3 pahses DC 7-48V JUYI Brushless motor driver board 10A sensorless motor speed controller with PWM control

Product Details:
Place of Origin: China
Brand Name: JUYI
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: PE bag+ carton
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T
Supply Ability: 1000sets/day
Contact Now

3 pahses DC 7-48V JUYI Brushless motor driver board 10A sensorless motor speed controller with PWM control

Description
Model Number: JYQD-V6.3B Operating Voltage: 7-48V DC
Max. Current: 10A Analog Voltage Speed Regulation(v): 0-5V
Color: Green

                 3 pahses DC 7-48V JUYI Brushless motor driver board 10A sensorless motor speed controller with PWM control





3 pahses DC 7-48V JUYI Brushless motor driver board 10A sensorless motor speed controller with PWM control 0



Application notes:
1. Confirm that the voltage and power parameters of the motor not exceed the range of the driver board as specified.

2. This driver board is used for 3-phase brushless sensorless motor, but not suit for all 3-phase brushless sensorless motors directly. If the driving effect is not good (such as starting jitter, reversing,the motor noload working current is too large, the speed is not stable, the efficiency is low, and can’t start-up with load.) Customers can adjust the resistance and capacitance of the driver board according to the actual situation to achieve the best driving effect (see the attachment for how to do the adjustment)

3.JYQD_V6.3B drive board is bare board, drive power below 100W motor does not need to force heat dissipation, need to ensure normal ventilation.

4.The 5V output port on the driver board is prohibited from connecting to external electrical equipment. It is only suitable for connecting external potentiometers and switches to this board for speed regulation and reversal.

5.The Signal on the JYQD_V6.3B driver board is the motor speed pulse output signal, and the output current is less than 5mA.


3 pahses DC 7-48V JUYI Brushless motor driver board 10A sensorless motor speed controller with PWM control 1

Driver Board Diagram





Port Description

1.Control Port
GND — Used for Driver board internal control

VR — Speed control port. Analog voltage speed regulation 0V-5V speed regulation, linear speed regulation from low to high. PWM speed                         regulation needs to be grounded with the driver board.

Z/F — Rotating direction control ports.Connect 5V or no connect in one direction, connect GND to the other direction.

Signal — Motor speed pulse signal output port, 5V pulse signal

5V — Driver board internal output voltage, external potentiometer or switch for speed adjustment and reversing operation.

2. Power Port
P+/VCC — DC +

P-/GND — DC -

MC — Motor Phase C

MB — Motor Phase B

MA — Motor Phase A

3. Please pay attention to the motor phase wire and Hall wire not to be too long. It will cause signal interference If the wire is too long.

4. Control port distance: 2.54mm,Power port distance:3.96 mm.

5. Pay attention to the insulation between the driver MOSFET and the heatsink or the installation plate.

Wiring diagram

3 pahses DC 7-48V JUYI Brushless motor driver board 10A sensorless motor speed controller with PWM control 2

Dimensional drawing
Unit: mm
Weight: 17g

3 pahses DC 7-48V JUYI Brushless motor driver board 10A sensorless motor speed controller with PWM control 3



DOWNLOAD JYQD-V6.3B USER MANUAL

3 pahses DC 7-48V JUYI Brushless motor driver board 10A sensorless motor speed controller with PWM control 4JYQD_V6.3B English.pdf
