Rectangle 12V 36V BLDC Motor Driver For Sensorless DC Motor Based On JY02A IC Motor Speed Controller

Certification
China Shanghai Juyi Electronic Technology Development Co., Ltd certification
Customer Reviews
Great customer service and everything arrived on time. The product was quality work.

—— Malik William

Great product and we are very happy with the responsiveness. We have purchased multiple times and remain very satisfied.

—— Matheus Potter

I'm Online Chat Now

Rectangle 12V 36V BLDC Motor Driver For Sensorless DC Motor Based On JY02A IC Motor Speed Controller

Rectangle 12V 36V BLDC Motor Driver For Sensorless DC Motor Based On JY02A IC Motor Speed Controller
Rectangle 12V 36V BLDC Motor Driver For Sensorless DC Motor Based On JY02A IC Motor Speed Controller Rectangle 12V 36V BLDC Motor Driver For Sensorless DC Motor Based On JY02A IC Motor Speed Controller

Large Image :  Rectangle 12V 36V BLDC Motor Driver For Sensorless DC Motor Based On JY02A IC Motor Speed Controller

Product Details:
Place of Origin: China
Brand Name: JUYI
Model Number: JYQD-V8.3B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PE bag+ carton
Delivery Time: 5-10 days
Payment Terms: T/T,L/C,Paypal
Supply Ability: 1000sets/day

Rectangle 12V 36V BLDC Motor Driver For Sensorless DC Motor Based On JY02A IC Motor Speed Controller

Description
Working Voltage: 12V-36VDC Working Current: 7A
Application: 3-phase Brushless Sensorless Motor Operating Temp.: -20—85℃
Analog Voltage Speed Regulation: 0-5V
Highlight:

12v servo motor controller

,

12 volt dc electric motor variable speed controller

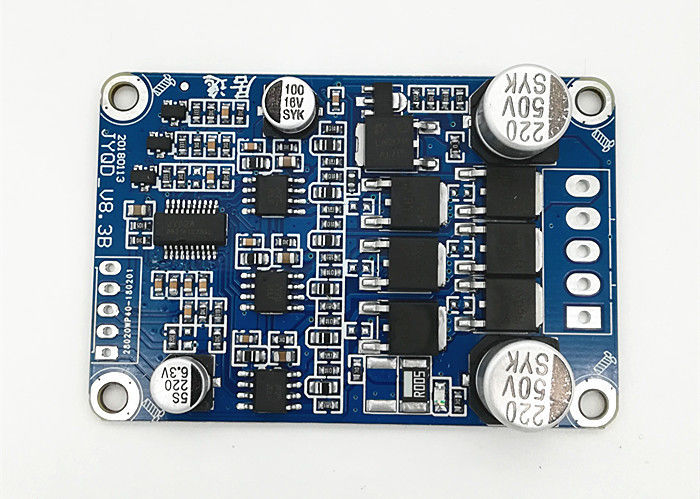

12VDC JYQD-V8.3B BLDC motor driver board for sensorless DC motor based on JY02A IC


Model number: JYQD-V8.3B
Operating temp.: -20—85℃
Operating voltage :12V-36V DC
Max current :7A
Cont.working current:8A
PWM speed control :PWM frequency:1-20KHZ; Duty cycle 0-100%
Analog voltage speed regulation: 0-5V
O.V / L.V protection :YES
Speed pulse signal output :YES


5V -----Driver board internal output voltage
M ---- Motor speed pulse signal output port, 5V pulse signal.



1. Control port
Z/F---- Rotating direction control ports. Connect “5V” high level or no connect is Forward direction, connect 0 V low level or connect to GND is reverse direction.
VR ----Speed control port. Analog voltage linear speed regulation 0.1v -5V, The input resistance is 20K Ohm ,connect with GND when input PWM speed regulation, PWM frequency:1-20KHZ; Duty cycle 0-100%
GND—Used for Drive board internal control
2. Power port
MA ----motor phase A
MB ---- motor phase B
MC---- motor phase C
GND----DC-
VCC----DC +

3. Use shielded wires if the drivers board has more than 50 cm distance from the motor, otherwise it may lead to abnormal driving, affecting the normal use.

4.Control port distance: 2.54mm,Power port distance:3.96 mm

5. Pay attention to the insulation between the driver MOSFET and the heatsink or the installation plate.

Wiring diagram
Rectangle 12V 36V BLDC Motor Driver For Sensorless DC Motor Based On JY02A IC Motor Speed Controller 0


Dimensional drawing

Rectangle 12V 36V BLDC Motor Driver For Sensorless DC Motor Based On JY02A IC Motor Speed Controller 1

Application notes:
1. Confirm that the voltage and power parameters of the motor not exceed the range of the driver board as specified.
2. This driver board is used for 3-phase brushless sensorless motor, but not suit for all 3-phase brushless sensorless motors directly. If the driving effect is not good (such as starting jitter, reversing, the motor noload working current is too large, the speed is not stable, the efficiency is low, and can’t start-up with load.) Customers can adjust the resistance and capacitance of the driver board according to the actual situation to achieve the best driving effect (see the attachment for how to do the adjustment)

3. JYQD_V8.3Bdriver board is bare board without housing and heatsink. If the power of the motor below 60W ,it does not need to add heatsink, It only needs to ensure normal ventilation and well insulation. If the power of the motor more than 60W, it must add heatsink like the diagram as below.
4. Please take note that JYQD_V8.3B driver board has no anti-reverse connection protection, it will permanently damage the driver board if reversed polarity connection.

5. The 5V output port on the driver board prohibits connect external device. It is only applicable to the external potentiometer and switch of the board for speed regulation and reversal.

6. The “M” terminal on the JYQD_V8.3B driver board is the motor speed pulse output signal (push-pull output), and the maximum output current is less than 5mA.
Rectangle 12V 36V BLDC Motor Driver For Sensorless DC Motor Based On JY02A IC Motor Speed Controller 2
DOWNLOAD JYQD-V8.3B USER MANUAL

Applications:
Brushless fan controller, brushless water pump controller,elctric tools controller, air blower controller driver,sensorless motor driver
