Five Digit Small Size Pulse Signal Tachometer Juyi DC Brushless Motor Driver Speed Display Module

Brand Name: JUYI
Model Number: JYQD-ZSJ-V2.3
MOQ: 1set
Price: Negotiable
Packaging Details: PE bag+ carton
Payment Terms: L/C, T/T,Paypal
Detail Information
Product Description
Detail Information
Place of Origin:
China
Working Voltage:
5V DC
Speed Display Range:
0-99999/RPM
Input Signal:
5V Pusle Signal
Installation Form:
Mosaic Type
Supply Ability:
1000sets/day
Highlight:

Juyi DC brushless motor driver

,

Juyi pulse signal tachometer

Product Description

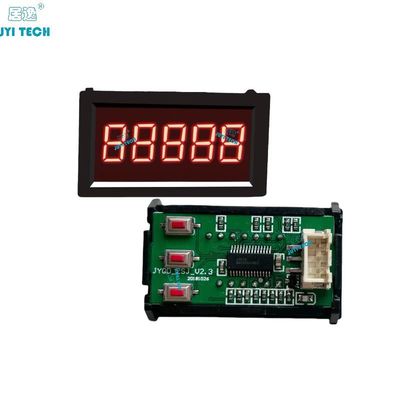

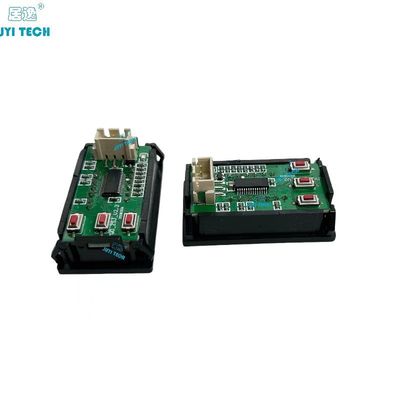

Five-digit small size pulse signal tachometer Juyi DC brushless motor driver speed display module



Five Digit Small Size Pulse Signal Tachometer Juyi DC Brushless Motor Driver Speed Display Module 0



Five Digit Small Size Pulse Signal Tachometer Juyi DC Brushless Motor Driver Speed Display Module 1

Description:
The tachometer JYQD-ZSJ-V2.3 can be used directly with JYQD series motor drivers with the small size and stable performance. It can also be used in various speed measurement occasions.


Application notes:
1. When powering up the tachometer, hold down the Set button until the number "6" appears on the screen.

2. Then press the "Plus" or "Minus" button, and the number you need will be displayed on the screen.

3. When the required number is set, stop the operation. After saving for about 10 seconds, return to zero.

4. After the tachometer is powered on again, the set number will be directly displayed. If it returns to zero after 3 seconds, it proves that the setting is correct.


Button Description

Five Digit Small Size Pulse Signal Tachometer Juyi DC Brushless Motor Driver Speed Display Module 2
Note: Set the number of pulses according to the number of pulses in one revolution of the motor.



Dimensional Drawing

Outline dimension: 44.4*25.6*19mm
Screen Size: 36.5*17.7mm
Dimensions of mounting holes: 42*25.5mm

Five Digit Small Size Pulse Signal Tachometer Juyi DC Brushless Motor Driver Speed Display Module 3

DOWNLOAD THE USER MANUAL OF JYQD-ZSJ-V2.3
