Product Overview:

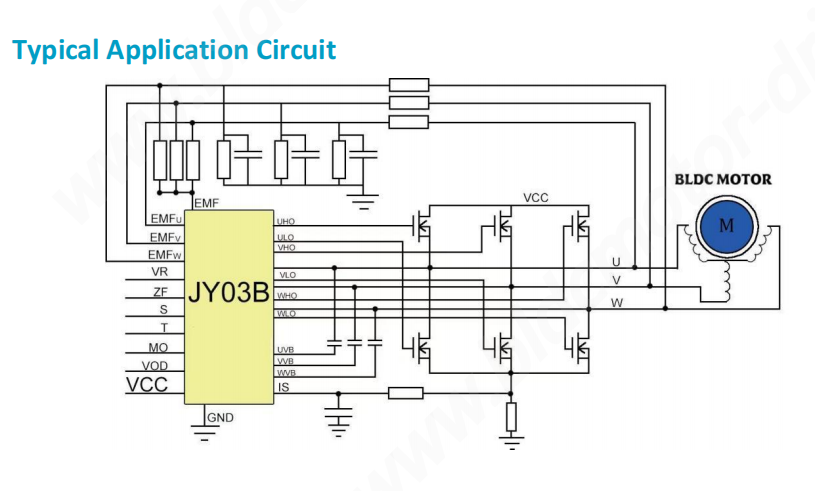

Hydraulic and circulation pump systems require long-term continuous operation, low acoustic noise, and reliable load startup under fluid resistance. The JY03B Sensorless BLDC Motor Control IC integrates motor control logic, MOSFET pre-drivers, and dual voltage regulators (12V/5V) into a single SSOP-28 package, eliminating the need for external Hall sensors and software programming.

Key Technical Advantages for Pump Applications:

    1. 16kHz Optimized PWM Control: Operating at 16kHz PWM frequency, JY03B achieves an optimal balance between acoustic noise reduction and high power conversion efficiency, outperforming traditional 20kHz schemes with higher torque output under identical supply conditions.

    2. JYKJ Full-Condition Safe Startup & QD Torque Adjustment: Fluid resistance can make motor startup difficult. With the QD pin startup torque adjustment (0V–2.5V range), engineers can tune startup torque according to impellers without stalling.

   3. Dual-Level IS Pin Current Protection: Features a two-stage current protection mechanism (Level-1 constant current limiting at 50mV IS threshold, Level-2 instant shutdown at 120mV) to protect external MOSFETs during sudden pump lock or overload.

Q1: Why is the JY03B IC suitable for BLDC variable-frequency water pumps?

A: The JY03B IC is optimized for 16kHz PWM control, achieving an excellent balance between high drive efficiency and acoustic noise reduction. Combined with its integrated adaptive startup and back-EMF detection circuits, it ensures stable and quiet operation for household booster pumps and circulation systems.

Q2: How does the JY03B IC protect pump motors from overload and rotor stall?

A: The JY03B integrates a dual-level IS pin current protection mechanism. When the IS pin voltage reaches 50mV, it enters constant-current limiting mode; if the voltage hits 120mV during abnormal conditions, it disables output within 4.5 microseconds. Additionally, it features automatic stall detection with up to 10 restart attempts before locking for safety.

Q3: How can engineers adjust the startup torque of JY03B for high-resistance pump impellers?

A: Engineers can adjust the startup torque directly by changing the voltage at the QD pin within a range of 0V to 2.5V (typically set between 0V and 0.8V for standard motors), enabling reliable load startup without hardware redesign.

Looking for a pre-assembled driver board based on JY03B? Check our JYQD-V9.3E (9-36V, ≤20A) or JYQD-V9.20B (9-30V, ≤6A) driver boards.
