Compact Size BLDC Three Phase PWM Motor Driver , Speed Control 3 Phase Mosfet Driver

Certification
China Shanghai Juyi Electronic Technology Development Co., Ltd certification
Customer Reviews
Great customer service and everything arrived on time. The product was quality work.

—— Malik William

Great product and we are very happy with the responsiveness. We have purchased multiple times and remain very satisfied.

—— Matheus Potter

I'm Online Chat Now

Compact Size BLDC Three Phase PWM Motor Driver , Speed Control 3 Phase Mosfet Driver

Compact Size BLDC Three Phase PWM Motor Driver , Speed Control 3 Phase Mosfet Driver
Compact Size BLDC Three Phase PWM Motor Driver , Speed Control 3 Phase Mosfet Driver Compact Size BLDC Three Phase PWM Motor Driver , Speed Control 3 Phase Mosfet Driver

Large Image :  Compact Size BLDC Three Phase PWM Motor Driver , Speed Control 3 Phase Mosfet Driver

Product Details:
Place of Origin: China
Brand Name: JUYI
Model Number: JYQD-V7.5E
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PE bag+ carton
Delivery Time: 5-10 days
Payment Terms: T/T,L/C,Paypal
Supply Ability: 1000sets/day

Compact Size BLDC Three Phase PWM Motor Driver , Speed Control 3 Phase Mosfet Driver

Description
Working Voltage: 36VDC Working Current: 15A
PWM Speed Control: Yes Speed Pulse Signal Output: Include
OPERATING TEMPERATURE: -20—85℃ MAX Power: 700W
Highlight:

3 phase ac motor controller

,

3 phase induction motor controller

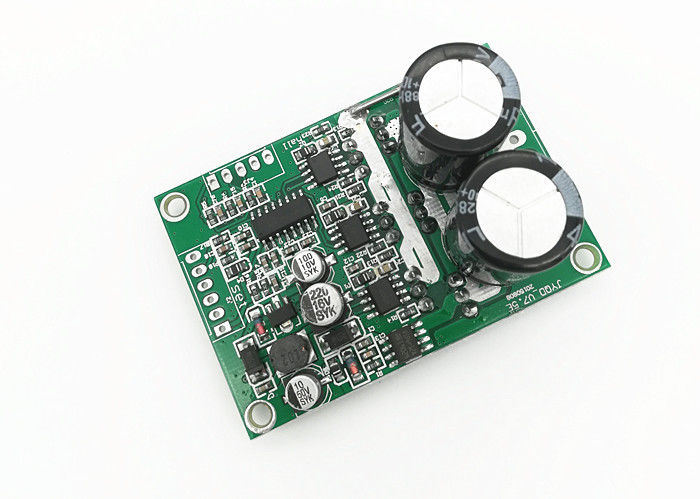

Compact size Hall effect BLDC motor driver 36VDC, 15A current PWM speed control

MODEL OPERATING TEMPERATURE(℃) OPERATING VOLTAGE(V) MAX Power

· CONTINUOUS OPERATING CURRENT

(A)

PWM SPEED REGULATION

(1-20KHZ)

ANALOG VOLTAGE SPEED REGULATION (V) Speed pulse signal output
JYQD-V7.5E -20—85℃ DC36V 700W 15A

Duty cycle

0-100%

0-5V










Applications:
BLDC fan
BLDC motor
BLDC air blower
BLDC water pump



Compact Size BLDC Three Phase PWM Motor Driver , Speed Control 3 Phase Mosfet Driver 0

Wiring diagram
Compact Size BLDC Three Phase PWM Motor Driver , Speed Control 3 Phase Mosfet Driver 1
1. Control port
5V —Driver board internal output voltage, external potentiometer or switch for speed adjustment and reversing operation

Z/F —Rotating direction control ports. Connect “5V” high level or no connect is Forward direction, connect 0 V low level or connect to GND is reverse direction.

VR —Speed control port. Analog voltage linear speed regulation 0.1v -5V, The input resistance is 20K Ohm ,connect with GND when input PWM speed regulation, PWM frequency:1-20KHZ; Duty cycle 0-100%

EL —Enable port control. Connect 5V or no connect to allow operation, connect GND to forbid operation.

Signal— Speed pulse signal output

GND—Used for Drive board internal control

2. Power port

MA ----motor phase A
MB ---- motor phase B
MC---- motor phase C
GND ----DC-
VCC----DC +

3:Hall sensor port
Ha--- Hall a
Hb---Hall b
Hc---Hall c
GND---GND
5V---5V output

4. Use shielded wires if the drivers board has more than 50 cm distance from the motor, otherwise it may lead to abnormal driving, affecting the normal use.

5. Control port distance: 2.54mm,Power port distance:3.96 mm

6. Pay attention to the insulation between the driver MOSFET and the heatsink or the installation plate.


Dimensional drawing
Compact Size BLDC Three Phase PWM Motor Driver , Speed Control 3 Phase Mosfet Driver 2

Application guidelines
1. Confirm that the voltage and power parameters of the motor not exceed the range as specified.
2. Applicable to hall brushless dc motor with Hall at 120°, not all manufacturers' Hall line sequence are corresponding, you can adjust the Hall line sequence or motor three-phase line sequence according to the actual situation, to achieve the best driving effect.
3. JYQD-V7.5E is driver board without housing and heatsink, it can drive the motor below 100 watt without any heatsink, but needs normal ventilation.
4. The 5V output port on the drive board is forbidden to connect external power equipment. It is only applicable to external potentiometer or switch for speed adjustment, commutation and enabling operation
















DOWNLOAD JYQD-V7.5E USER MANUAL
