JUYI Tech Arduino 24V BLDC Motor Driver Hall Effect High Efficiency PWM Speed Control Motor Controller

JUYI Tech Arduino 24V BLDC Motor Driver Hall Effect High Efficiency PWM Speed Control Motor Controller
JUYI Tech Arduino 24V BLDC Motor Driver Hall Effect High Efficiency PWM Speed Control Motor Controller
JUYI Tech Arduino 24V BLDC Motor Driver Hall Effect High Efficiency PWM Speed Control Motor Controller JUYI Tech Arduino 24V BLDC Motor Driver Hall Effect High Efficiency PWM Speed Control Motor Controller JUYI Tech Arduino 24V BLDC Motor Driver Hall Effect High Efficiency PWM Speed Control Motor Controller

Large Image :  JUYI Tech Arduino 24V BLDC Motor Driver Hall Effect High Efficiency PWM Speed Control Motor Controller

Product Details:
Place of Origin: China
Brand Name: JUYI
Model Number: JYQD-V7.3E2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PE bag+ carton
Delivery Time: 5-10 days
Payment Terms: T/T,L/C,Paypal
Supply Ability: 1000sets/day
Contact Now

JUYI Tech Arduino 24V BLDC Motor Driver Hall Effect High Efficiency PWM Speed Control Motor Controller

Description
Working Voltage: 24VDC Working Current: 15A
PWM Speed Control: YES ANALOG VOLTAGE SPEED REGULATION: 0-5V
Speed Pulse Signal Output: Yes Application: Hall Effect Brushless Dc Motor
Highlight:

24v brushless controller

,

24v bldc motor controller

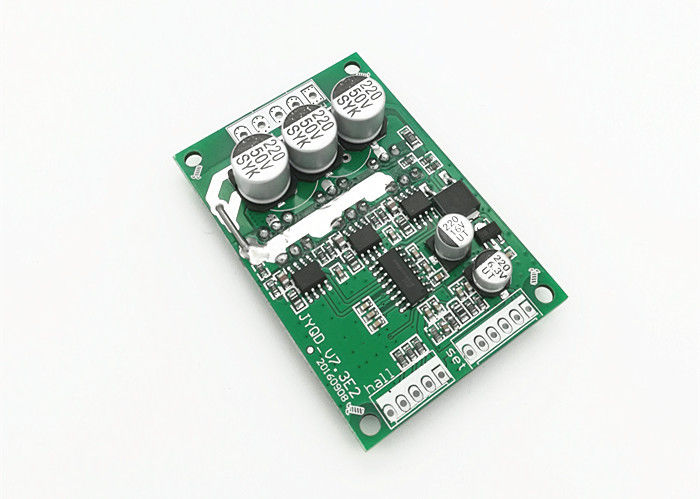

24V DC Max power 500W Arduino control JYQD-V7.3E2 Hall effect BLDC motor driver board​
JUYI Tech Arduino 24V BLDC Motor Driver Hall Effect High Efficiency PWM Speed Control Motor Controller 0


MODEL: JYQD-V7.3E2

OPERATING VOLTAGE(V): 24V DC

MAX CURRENT (A):15A

ANALOG VOLTAGE SPEED REGULATION (V): 0-5V

Speed pulse signal output: YES




Application guidelines

1. Please confirm that the voltage and power parameters of the motor not exceed the range as specified.

2. This BLDC  motor driver applicable to hall effect brushless dc motor with Hall at 120°, not all manufacturers' Hall line sequence are corresponding, you can adjust the Hall line sequence or motor three-phase line sequence according to the actual situation, to achieve the best driving effect.

3. JYQD-V7.3E2 is the driver board without housing and heatsink, it can drive the BLDC motor below 100 watt without any heatsink, but needs normal ventilation.please add heatsink if the power more than 100W.

4.  Please do pay attention to the insulation between the BLDC motor driver MOSFET and the heatsink or the installation plate.
JUYI Tech Arduino 24V BLDC Motor Driver Hall Effect High Efficiency PWM Speed Control Motor Controller 1



Wiring diagram
JUYI Tech Arduino 24V BLDC Motor Driver Hall Effect High Efficiency PWM Speed Control Motor Controller 2

1. Control port

5V — Driver board internal output voltage, external potentiometer or switch for speed adjustment and reversing operation
Z/F — Rotating direction control ports. Connect “5V” high level or no connect is Forward direction, connect 0 V low level or connect to GND is reverse direction.
VR — Speed control port. Analog voltage linear speed regulation 0.1v -5V, The input resistance is 20K Ohm ,connect with GND when input PWM speed regulation, PWM frequency:1-20KHZ; Duty cycle 0-100%
EL — Enable port control. Connect 5V or no connect to allow operation, connect GND to forbid operation.
Signal — Speed pulse signal output
GND — Used for Driver board internal control

2. Power port
MA ----BLDC motor phase A
MB ---- BLDC motor phase B
MC---- BLDC motor phase C
P- ----Power DC-
P+----Power DC +

3:Hall sensor port
Ha--- Hall a
Hb---Hall b
Hc---Hall c
GND---GND
5V---5V output


Dimensional drawing
JUYI Tech Arduino 24V BLDC Motor Driver Hall Effect High Efficiency PWM Speed Control Motor Controller 3


DOWNLOAD JYQD-V7.3E2 USER MANUAL
