JUYI Motor Tachometer Module Adjust Number Of Pulses

Brand Name:	JUYI
Model Number:	JYQD-ZSJ-V2.3
MOQ:	1 set
Price:	Negotiable
Packaging Details:	PE bag+ carton
Payment Terms:	L/C, T/T,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Working Voltage:

5V DC

Speed Display Range:

0-99999/ RPM

Input Signal:

5V Pusle Signal

Installation Form:

Mosaic Type

Supply Ability:

1000sets/day

Highlight:

JUYI tachometer

Motor tachometer

Motor tachometer module

Product Description

JUYI tachometer, Motor tachometer module ,The motor tachometer can adjust the number of pulses

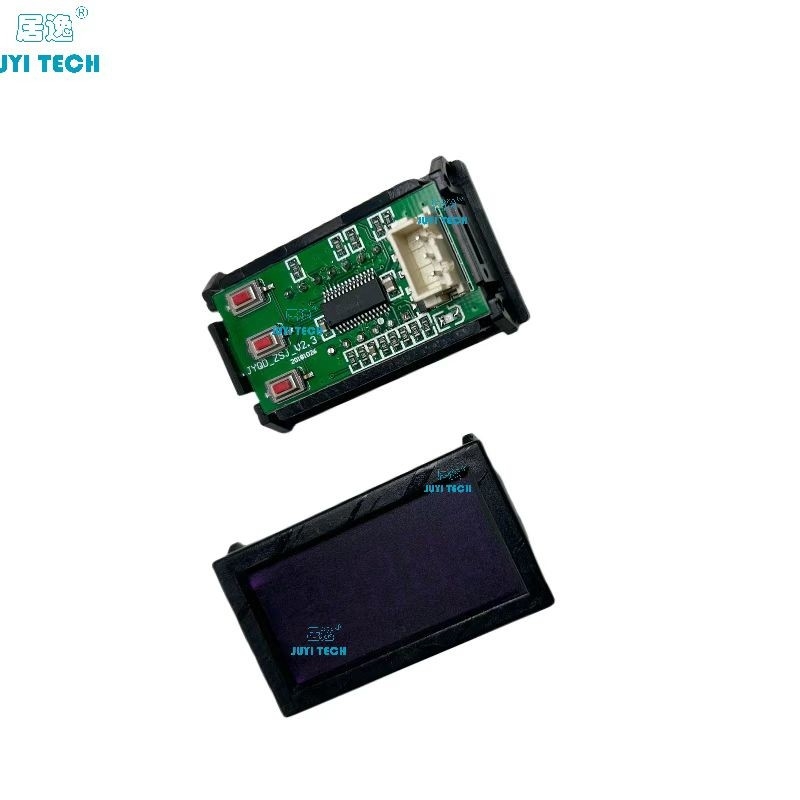

JUYI Motor Tachometer Module Adjust Number Of Pulses 0

Description:

The tachometer JYQD-ZSJ-V2.3 can be used directly with JYQD series motor drivers with the small size and stable performance. It can also be used in various speed measurement occasions.

Application notes:

1. When powering up the tachometer, hold down the Set button until the number "6" appears on the screen.

2. Then press the "Plus" or "Minus" button, and the number you need will be displayed on the screen.

3. When the required number is set, stop the operation. After saving for about 10 seconds, return to zero.

4. After the tachometer is powered on again, the set number will be directly displayed. If it returns to zero after 3 seconds, it proves that the setting is correct.

Button Description

Note: Set the number of pulses according to the number of pulses in one revolution of the motor.

Dimensional Drawing

Outline dimension: 44.4*25.6*19mm

Screen Size: 36.5*17.7mm

Dimensions of mounting holes: 42*25.5mm

JUYI Motor Tachometer Module Adjust Number Of Pulses 2

DOWNLOAD THE USER MANUAL OF JYQD-ZSJ-V2.3

JYQD-ZSJ-V2.3--English.pdf
