110V High Voltage BLDC Motor Controller , 150W Round Brushless DC Controller

110V High Voltage BLDC Motor Controller , 150W Round Brushless DC Controller
110V High Voltage BLDC Motor Controller , 150W Round Brushless DC Controller 110V High Voltage BLDC Motor Controller , 150W Round Brushless DC Controller

Large Image :  110V High Voltage BLDC Motor Controller , 150W Round Brushless DC Controller

Product Details:
Place of Origin: China
Brand Name: JUYI
Model Number: JYQD-V8.6
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PE bag+ carton
Delivery Time: 5-10 days
Payment Terms: T/T,L/C,Paypal
Supply Ability: 1000sets/day

110V High Voltage BLDC Motor Controller , 150W Round Brushless DC Controller

Description
Working Voltage: 220V AC Working Current: 0.5A
Application: Axial Flow Fan,air Blower,water Pump Operating Temp.: -20 - 85℃
Shape: Round Duty Cycle: 0-100%
Highlight:

48 volt dc motor controller

,

high current dc motor speed controller

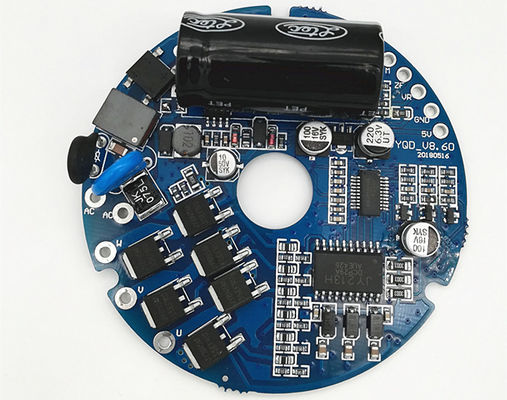

220V AC input JYQD-V8.6 brushless DC motor driver board for sensorless DC motor


Model number JYQD-V8.6
Operating temp. -20—85℃
Operating voltage 110V AC / 220V AC
Max Power 150W
Cont.working current 0.5A
·PWM speed control PWM frequency:1-20KHZ; Duty cycle 0-100%
Analog voltage speed regulation 0-5V
O.V / L.V protection YES
Speed pulse signal output YES



Wiring diagram

110V High Voltage BLDC Motor Controller , 150W Round Brushless DC Controller 0
5V -----Driver board internal output voltage
---- Motor speed pulse signal output port, 5V pulse signal.
Z/F---- Rotating direction control ports. Connect “5V” high level or no connect is Forward direction, connect 0 V low level or connect to GND is reverse direction.
VR ----Speed control port. Analog voltage linear speed regulation 0.1v -5V, The input resistance is 20K Ohm ,connect with GND when input PWM speed regulation, PWM frequency:1-20KHZ; Duty cycle 0-100%
GND—Used for Drive board internal control



2. Power port

U/MA ----motor phase A
V/MB ---- motor phase B
W/MC---- motor phase C
AC----L
AC----N

3. Use shielded wires if the drivers board has more than 50 cm distance from the motor, otherwise it may lead to abnormal driving, affecting the normal use.

4.This AC input driver board can be the built-in driver in application

5. Pay attention to the insulation between the driver MOSFET and the heatsink or the installation plate.

Dimensional drawing
110V High Voltage BLDC Motor Controller , 150W Round Brushless DC Controller 1
110V High Voltage BLDC Motor Controller , 150W Round Brushless DC Controller 2
Application notes:
1. Confirm that the voltage and power parameters of the motor not exceed the range of the driver board as specified.
2. This driver board is used for 3-phase brushless sensorless motor, but not suit for all 3-phase brushless sensorless motors directly. If the driving effect is not good (such as starting jitter, reversing, the motor noload working current is too large, the speed is not stable, the efficiency is low, and can’t start-up with load.) Customers can adjust the resistance and capacitance of the driver board according to the actual situation to achieve the best driving effect (see the attachment for how to do the adjustment)
3. JYQD-V8.6 driver board is bare board without housing and heatsink. If the power of the motor below 60W ,it does not need to add heatsink, It only needs to ensure normal ventilation and well insulation. If the power of the motor more than 60W, it must add heatsink like the diagram as below.
4. The 5V output port on the driver board prohibits connect external device. It is only applicable to the external potentiometer and switch of the board for speed regulation and reversal.
5. The “M” terminal on the JYQD-V8.6 driver board is the motor speed pulse output signal (push-pull output), and the maximum output current is less than 5mA.



DOWNLOAD JYQD-V8.6 USER MANUAL
