JUYI Segway BLDC Dual Motor Controller 12V36V DC Motor Driver Board For Self Balanced Vehicle
All Category

BLDC Motor Driver

BLDC Motor Driver IC

Sensorless BLDC Motor Driver

High Voltage BLDC Motor Controller

3 Phase BLDC Motor Driver

BLDC Water Pump Controller

12V BLDC Motor Driver

24V BLDC Motor Driver

BLDC Motor Driver MOSFET
Contact Us
Ms. Lisa
jiangxinle@juyitech.com
+86-18538222869
wechat +86 18538222869
Contact Now
name
  • name
  • name
  • name
  • name
  • name
  • name

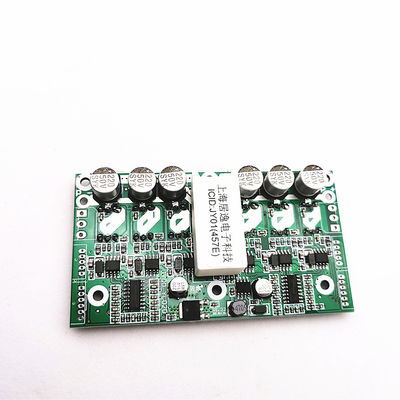

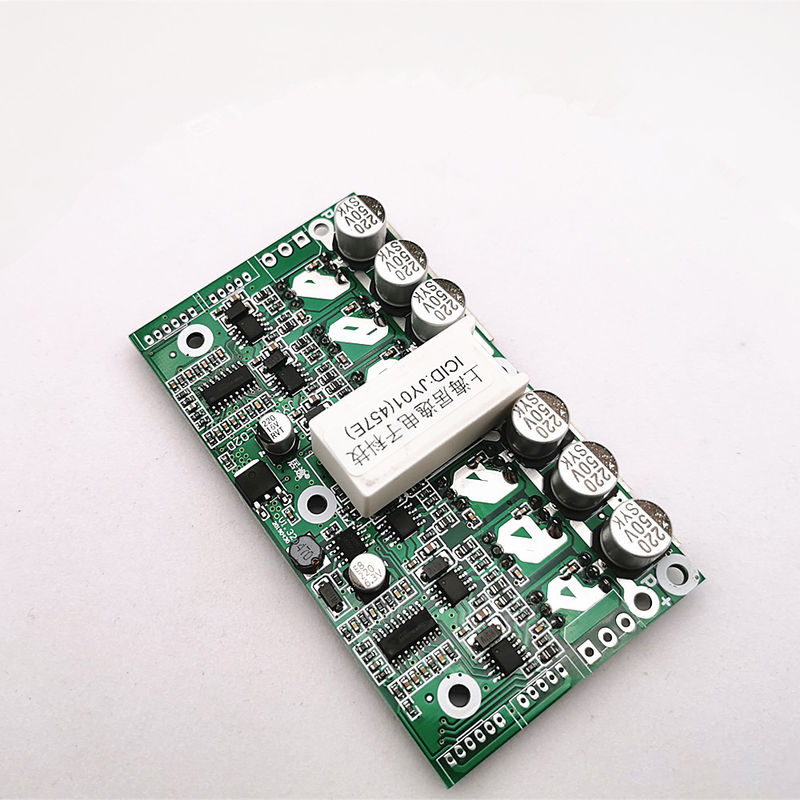

JUYI Segway BLDC Dual Motor Controller 12V36V DC Motor Driver Board For Self Balanced Vehicle

Brand Name: JUYI
Model Number: JYQD-YL02D
MOQ: 1 set
Price: Negotiable
Packaging Details: PE bag+ carton
Payment Terms: T/T,L/C,Paypal
Detail Information
Product Description
Detail Information
Place of Origin:
China
Working Voltage:
12-36VDC
Drive Power:
500W/ Motor
PWM Speed Control:
Duty Cycle 0-100%
Speed Pulse Signal Output:
YES
Color:
Green
Operating Temp.:
-20 - 85℃
Supply Ability:
1000sets/day
Highlight:

BLDC Dual Motor Controller

,

Segway Dual Motor Controller 12VDC

,

Self Balanced Vehicle BLDC Motor Driver

Product Description

12-13VDC BLDC dual motor controller for Segway motor,and Self-Balanced Vehicle





Model number :JYQD-YL02D
Operating temp.: -20—85℃
Operating voltage: 12-36VDC
Cont.working current: 15A
PWM speed control PWM frequency:1-20KHZ; Duty cycle 0-100%
Analog voltage speed regulation :0-5V
Speed pulse signal output :YES
Dual-motor drive mode:500W each

Model Description
JYQD-YL02D(8559)  direct start version has NO LOCK function,(linear speed regulation 0-5V,liner brake:0-5V)
JYQD-YL02D(457E) direct start version has NO LOCK function,(linear speed regulation 0-2.5V,liner brake:0-2.5V)
JYQD-YL-02D(99F2) safety start version has LOCK function.(linear speed regulation 0-5V,liner brake:0-5V)
JYQD-YL-02D(C737) safety start version has LOCK function.(linear speed regulation 0-2.5V,liner brake:0-2.5V)





Note:Safety start: if you use a knob style potentiometer to adjust the speed, if the potentiometer not rest to 0 before stop,the motor will direct start according to the last operation,it not safe,so safety start function will automatic reset to 0 to avoid the motor start directly in next power on.



JUYI Segway BLDC Dual Motor Controller 12V36V DC Motor Driver Board For Self Balanced Vehicle 0
