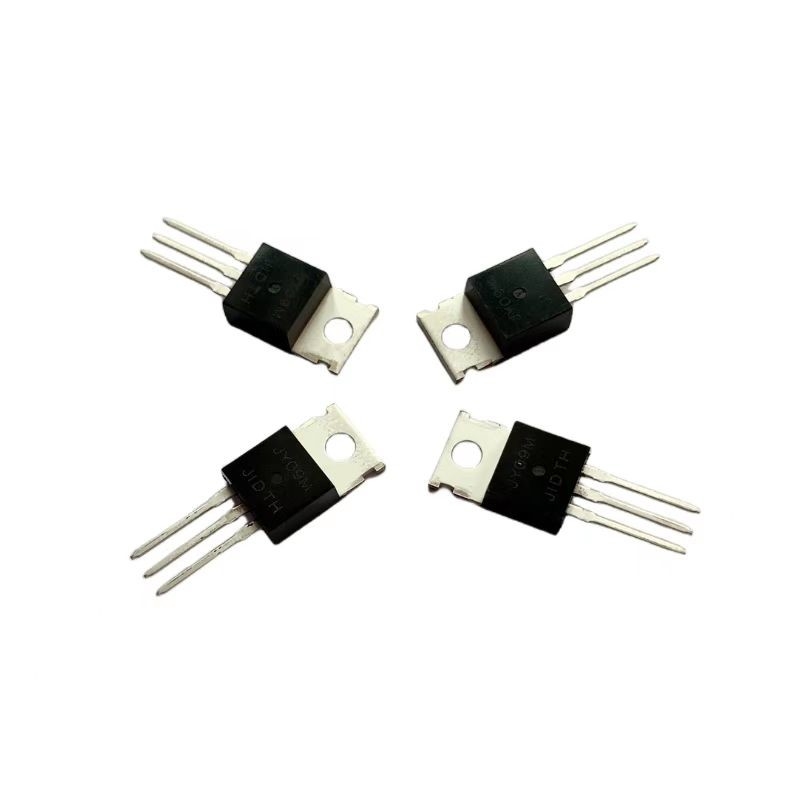

JUYI Tech JY09M N Channel Enhancement MOS IC TO-220 70V90A Power Mosfet

Brand Name: JUYI
Model Number: JY09M
MOQ: 10set
Price: Negotiable
Packaging Details: PE bag+ carton
Detail Information
Product Description
Detail Information
Place of Origin:
China
Drain-Source Voltage:
70V
Gate-Source Voltage:
±20V
Maximum Power Dissipation:
165W
Color:
Black
Supply Ability:
1000sets/day
Highlight:

TO-220 Power Mosfet

,

N Channel Enhancement Power Mosfet

,

70V90A Power Mosfet

Product Description

JUYI Tech JY09M N Channel Enhancement MOS IC TO-220 70V90A Power Mosfet



♦♦♦♦Pls contact with us to get more informations of JY09M,thanks!



The JY09M utilizes the latest trench processing techniques to achieve the high cell density and reduces the on-resistance with low gate charge. These features combine to make this design an extremely efficient and reliable device for use in power switching application and a wide variety of other applications.

FEATURES:
● 70V/90A, RDS(ON) =6.8mΩ@VGS=10V(typical)
● Fast switching and reverse body recovery
● Fully characterized avalanche voltage and current
● Excellent package for good heat dissipation

APPLICATIONS:
● Power Switching application
● Hard switched and high frequency circuits
● Uninterruptible power supply

PIN DESCRIPTION
JUYI Tech JY09M N Channel Enhancement MOS IC TO-220 70V90A Power Mosfet 0

Absolute Maximum Ratings(Tc=25ºC Unless Otherwise Noted)
JUYI Tech JY09M N Channel Enhancement MOS IC TO-220 70V90A Power Mosfet 1

Electrical Characteristics(Ta=25ºC Unless Otherwise Noted)

JUYI Tech JY09M N Channel Enhancement MOS IC TO-220 70V90A Power Mosfet 2
