Product Details:
|
| Operating Range: | 40℃ To 125℃ | Input Logic Compatible: | 3.3V, 5V,15V |
|---|---|---|---|
| High-voltage Process: | 600V | Application: | 3-phase Motor Inverter Driver |
| Color: | Black | Built-in Input Filter: | Yes |
| High Light: | high current mosfet driver,mosfet stepper driver |
||

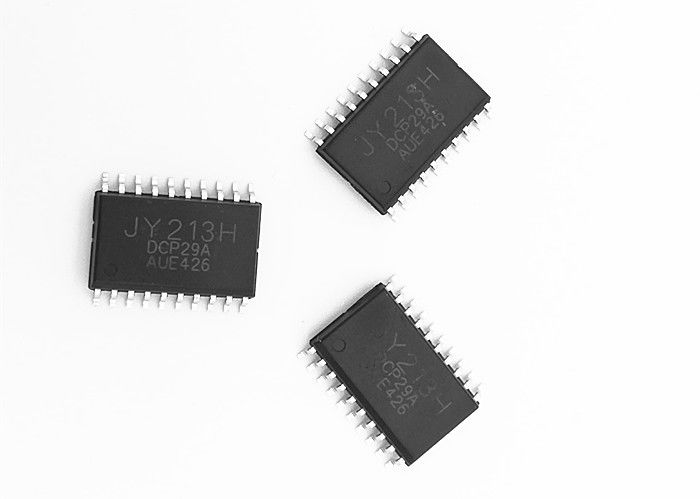

JY213H High Voltage 3-Phase Gate Driver
with three independent high and low side referenced output channels
| DESCRIPTION The JY213H is a high speed power MOSFET and IGBT driver with three independent high and low side referenced output channels for 3-phase gate driver. Built-in deadtime protection and Shoot-through protection that prevent half-bridge breakdown. The UVLO circuits prevent malfunction when VCC and VBS are lower than the specified threshold voltage. 600V high-voltage process and common-mode noise canceling technique provide stable operation of high-side drivers under high-dv/dt noise circumstances. APPLICATION 3-phase Motor Inverter Driver Air Condition Washing Machines |
FEATURES Integrated 600V half-bridge high side driver Driver up to 3-phase half-bridge gates Built-in deadtime control Shoot-through protection Under voltage lockout for VCC and VBS 3.3V, 5V,15V input logic Compatible Built-in input filter -40℃ to 125℃ operating range Common-Mode dv/dt Noise Canceling Circuit |
ORDER INFORMATION
| Valid Part Number | Package Type | Top Code |
| JY213H-S | 20-PIN, SOP, 300mil | JY213H-S |
| JY213H-S1 | 24-PIN, SOP, 300mil | JY213H-S1 |
| JY213H-S2 | 28-PIN, SOP, 300mil | JY213H-S2 |
DOWNLOAD JY213H USER MANUAL
