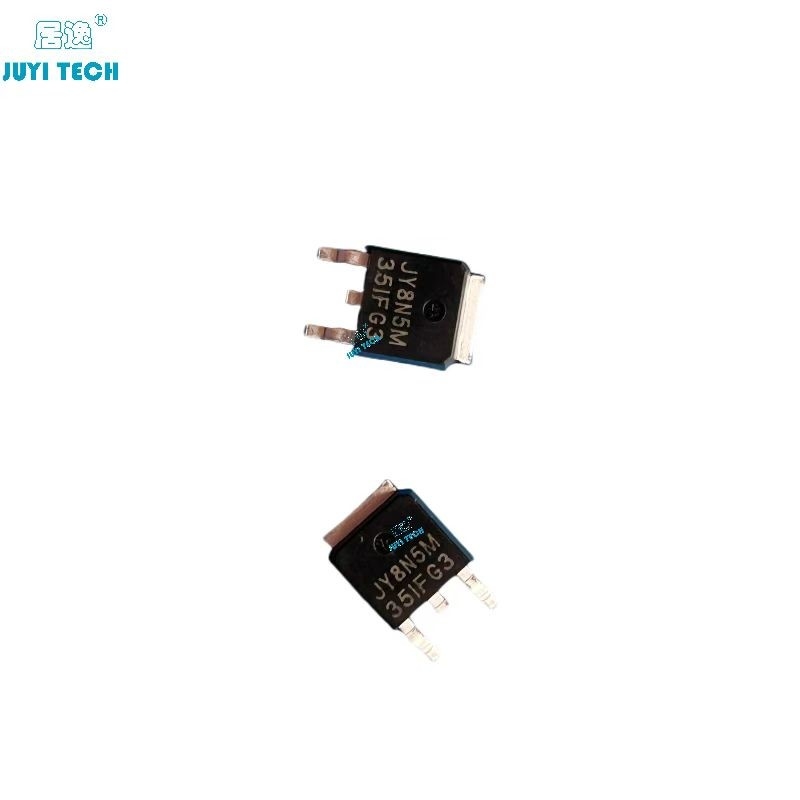

JUYI 500V/8A N Channel Enhancement Mode Power MOSFET

Brand Name:	JUYI
Model Number:	JY8N5M
MOQ:	10set
Price:	Negotiable
Packaging Details:	PE bag+ carton
Payment Terms:	L/C, T/T,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Drain-Source Voltage:

Gate-Source Voltage:

Pulsed Drain Current:

Maximum Power Dissipation:

Supply Ability:

1000sets/day

Highlight:

500V Power MOSFET

8A Power MOSFET

N Channel Power MOSFET

Product Description

JUYI 500V/8A N Channel Enhancement Mode Power MOSFET

GENERAL DESCRIPTION

The product utilizes the advanced planar processing techniques to achieve the highcell density and reduces the on-resistance with high repetitive

avalanche rating. These features combine to make this design an extremely efficient and reliable device for use in power switching application and a wide variety of other applications.

FEATURES

● 500V/8A, RDS(ON) =0.75Ω@VGS=10V(Typical)

● Fast switching and reverse body recovery

● Excellent package for good heat dissipation

APPLICATIONS

● Lighting

● High efficiency switch mode power supplies

PIN DESCRIPTION

Absolute Maximum Ratings(Tc=25ºC Unless Otherwise Noted)

Symbol	Parameter		Limit	Unit
VDS	Drain-Source Voltage		500	V
VGS	Gate-Source Voltage		±30	V
ID	Continuous Drain Current	Tc=25ºC	8	A
ID	Continuous Drain Current	Tc=100ºC	4.8	A
IDM	Pulsed Drain Current		30	A
PD	Maximum Power Dissipation		80	W
TJ TSTG	Operating Junction and Storage Temperature Range		-55+150	ºC
RθJC	Thermal Resistance-Junction to Case		1.56	℃/W

Electrical Characteristics(Tc=25ºC Unless Otherwise Noted)

Electrical Characteristics(Ta=25ºC Unless Otherwise Noted)
