BLDC Motor Driver MOSFET
>

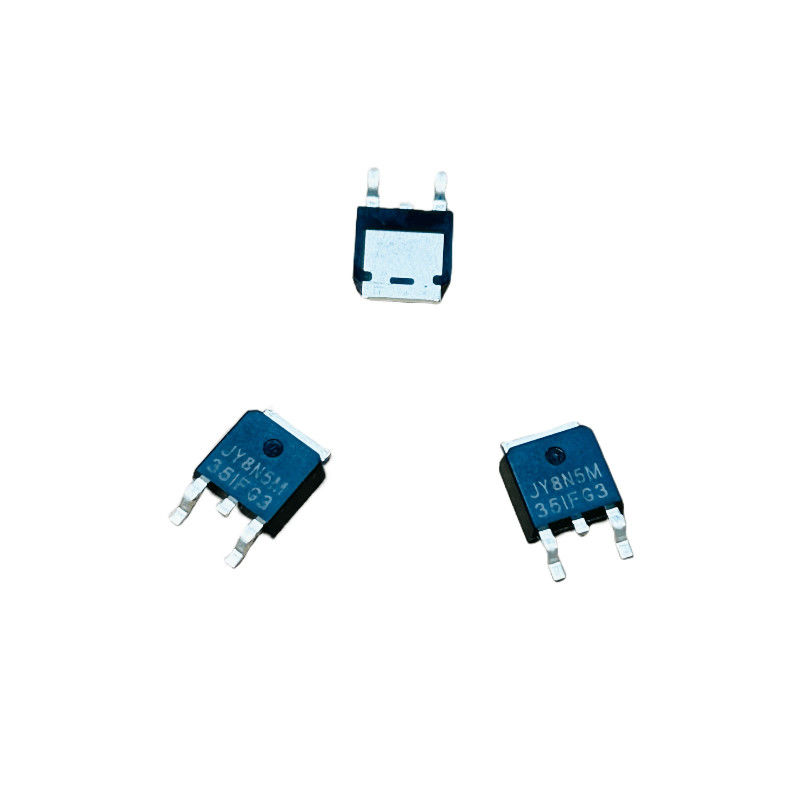

JUYI 500V 8A pwm N Channel Enhancement Mode Power MOSFET made in China

JUYI 500V 8A pwm N Channel Enhancement Mode Power MOSFET made in China

Brand Name: JUYI
Model Number: JY8N5M TO-252
MOQ: 1 set
Price: negotiable
Packaging Details: PE bag+ carton
Payment Terms: T/T,L/C,PAYPAL
Detail Information
Place of Origin:
China
Reverse Body Recovery:
Yes
High Frequency Circuits:
Yes
Color:
Black And White
Operating Temperature Range:
-55°C To 155°C
Application:
High Efficiency Switch Mode Power Supplies
Package Type:
TO-252
Output Current:
Up To 30A
Channel:
N Channel
Supply Ability:
1000 sets/day
Product Description
GENERAL DESCRIPTION
The product utilizes the advanced planar processing techniques to achieve the highcell density
and reduces the on-resistance with high repetitive avalanche rating. These features combine to
make this design an extremely efficient and reliable device for use in power switching application
and a wide variety of other applications.

FEATURES
● 500V/8A, RDS(ON) =0.75Ω@VGS=10V(Typical)
● Fast switching and reverse body recovery
● Excellent package for good heat dissipation

APPLICATIONS
● Lighting
● High efficiency switch mode power supplies

PIN DESCRIPTION
JUYI 500V 8A pwm N Channel Enhancement Mode Power MOSFET made in China 0
Absolute Maximum Ratings(Tc=25ºC Unless Otherwise Noted)
JUYI 500V 8A pwm N Channel Enhancement Mode Power MOSFET made in China 1

Electrical Characteristics(Tc=25ºC Unless Otherwise Noted)
JUYI 500V 8A pwm N Channel Enhancement Mode Power MOSFET made in China 2

Electrical Characteristics(Ta=25ºC Unless Otherwise Noted)
JUYI 500V 8A pwm N Channel Enhancement Mode Power MOSFET made in China 3

JUYI 500V 8A pwm N Channel Enhancement Mode Power MOSFET made in China 4
JUYI 500V 8A pwm N Channel Enhancement Mode Power MOSFET made in China 5
